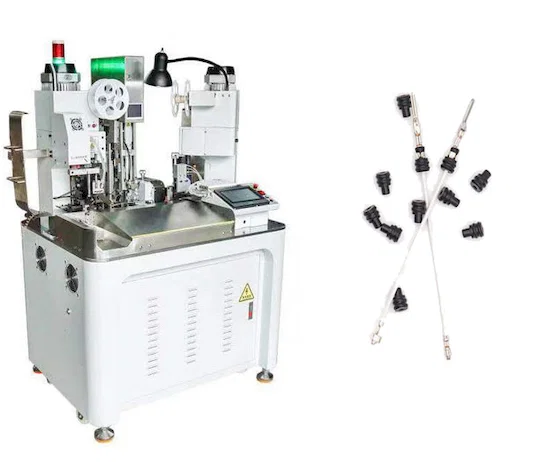

Automatic wire crimping and water seal insertion machine WPM-078H
Model No : WPM-078H
wire crimping and water seal insertion machine, Water Seal Insertion Machine, Insertion Machine
Wire range:0.3~2.5sqmm,AWG28#-AWG14#
Cutting length:45-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Suitable applicator: OTP applicator, European applicator and Korea applicator
Crimping stroke:30mm(40mm for optinal)
Air pressure: 5-6kgf
Detailed description
wire crimping and water seal insertion machine, Water Seal Insertion Machine, Insertion Machine
This crimping machine is an automatic wire on both sides crimping and water seal insertion machine.
it can automatically feed the water seal by vibration plate, insert the water seal before crimping terminals.
Power: AC220v/50/60hz

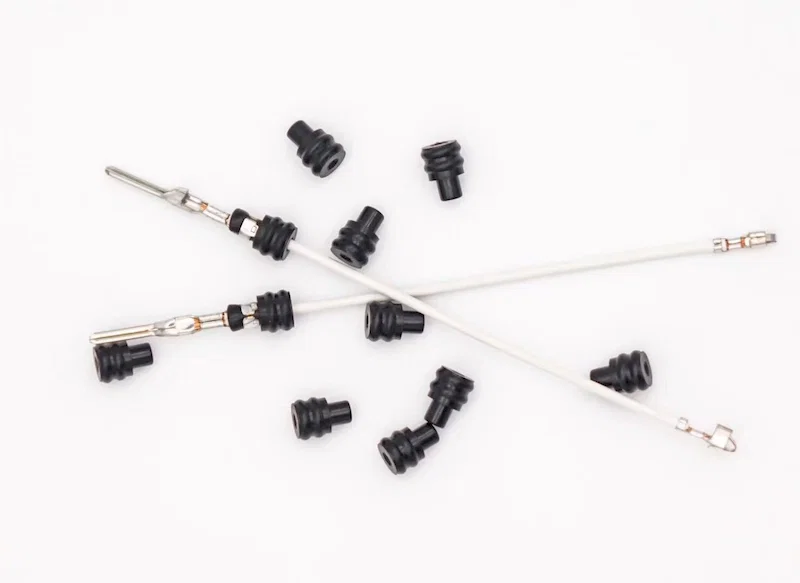

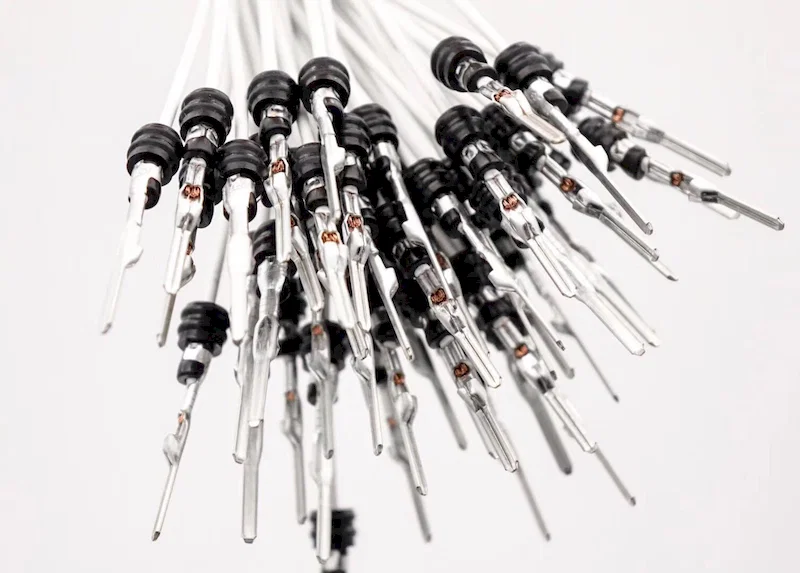

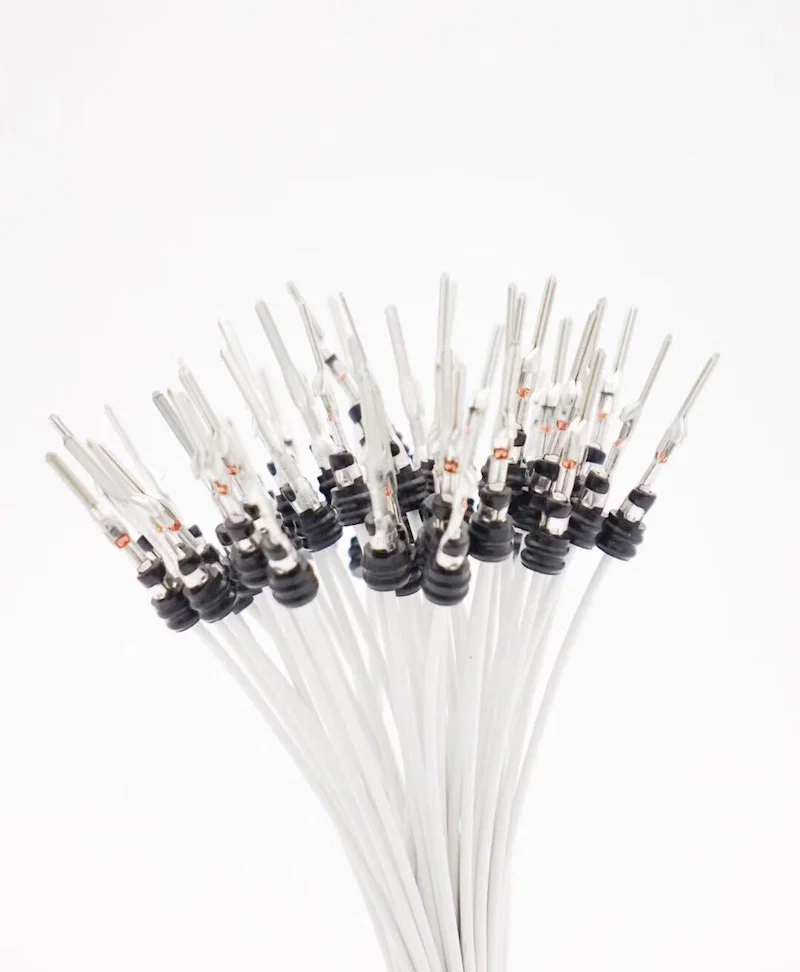

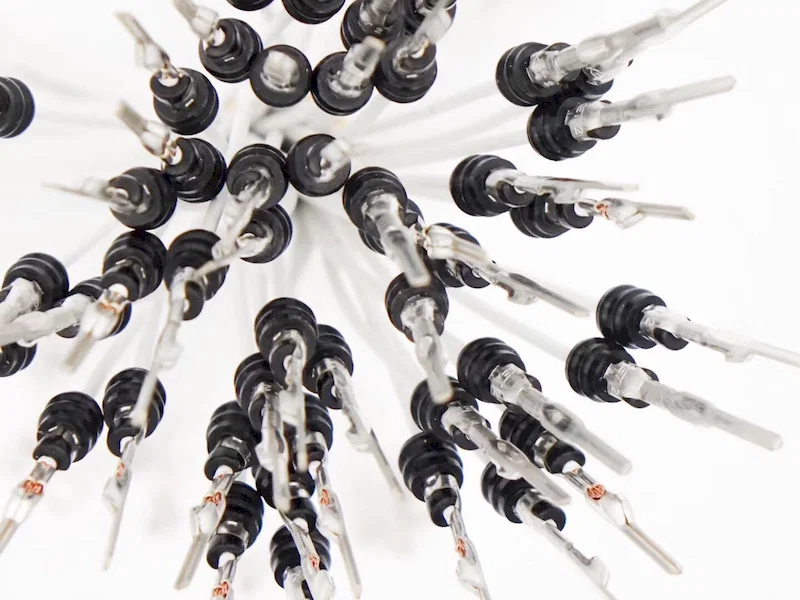

Functions: Wire cut, both ends striping, one side/both sides crimping and inserting cable water seal.
Capacity: 2000pcs~3000pcs/h(L=150MM)
Wire range:0.3~2.5sqmm, AWG28#-AWG14#
Cutting length:45-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Suitable applicator: OTP applicator, European applicator, and Korea applicator
Crimping stroke:30mm(40mm for optional)
Air pressure: 5-6kgf
