Coax Cable Stripper Machine, Coaxial Cable Stripping Machine, Coax Cable Stripping Machine
This model is a semi-auto servo motor coaxial wire stripping machine, suitable for shielding cable, coaxial cable, multi-core inner wire, and single-core wire with easy operation and high precision.
Product Features

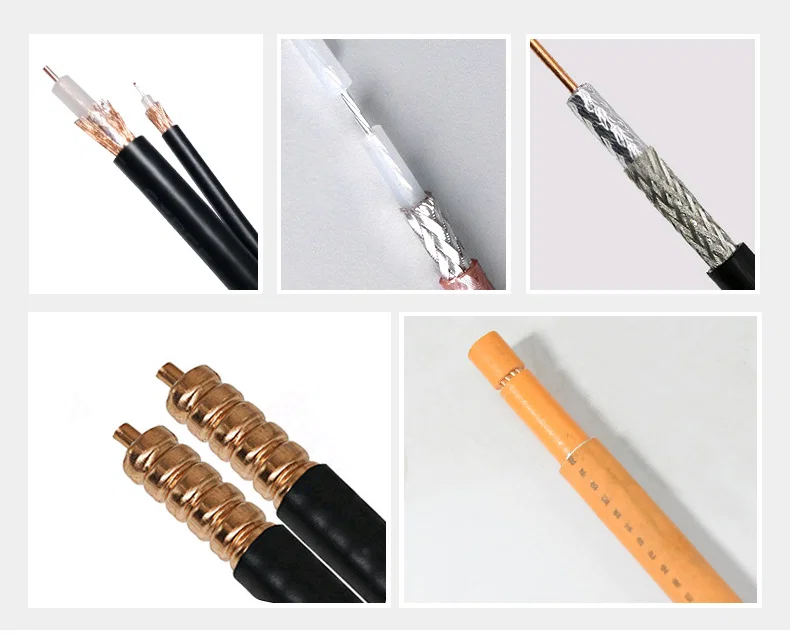

- Suitable for all kinds of semi-flexible and flexible coaxial cable, charging cable, medical wire, and multi-layer precision stripping, with no damage to the wire core
- HMI touch screen, easy to understand and operate. It can peel up to 9 layers and store up to 99 machining parameters
- The use of a rotating head, and well-designed blades, improve the stability and service life of the blade
- Servo motor, precise ball screw, and multi-point motion control system are adopted to ensure stable and efficient working performance
- The blades adopt imported tungsten steel and titanium alloy layer, sharp and durable

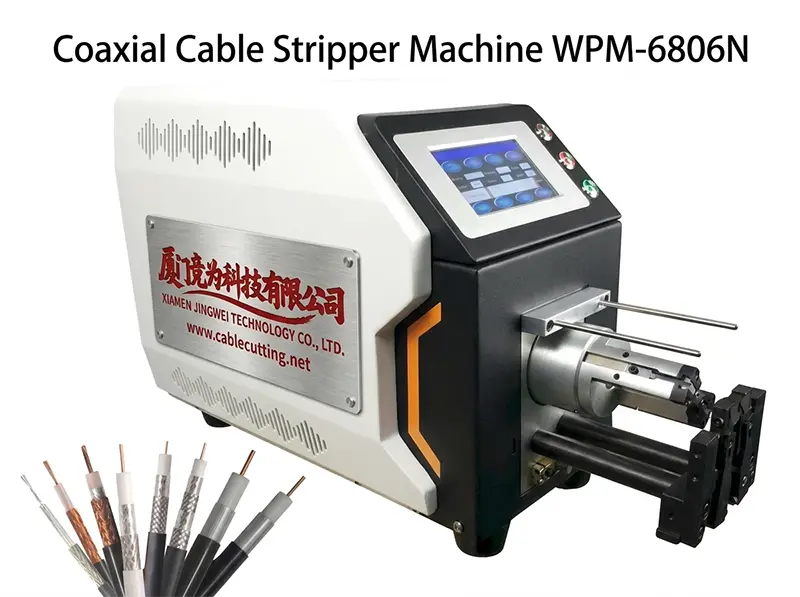

Model WPM-6806N
Wire Range Diam 1-7mm
Stripping Length 0.1mm-50mm
Max stripping layers 9 layers
Cutting Depth Unit 0.01mm
Blade Tungsten
Productivity 700-1200pcs/h
Power AC220/50Hz AC110/60Hz
Weight 30kg
