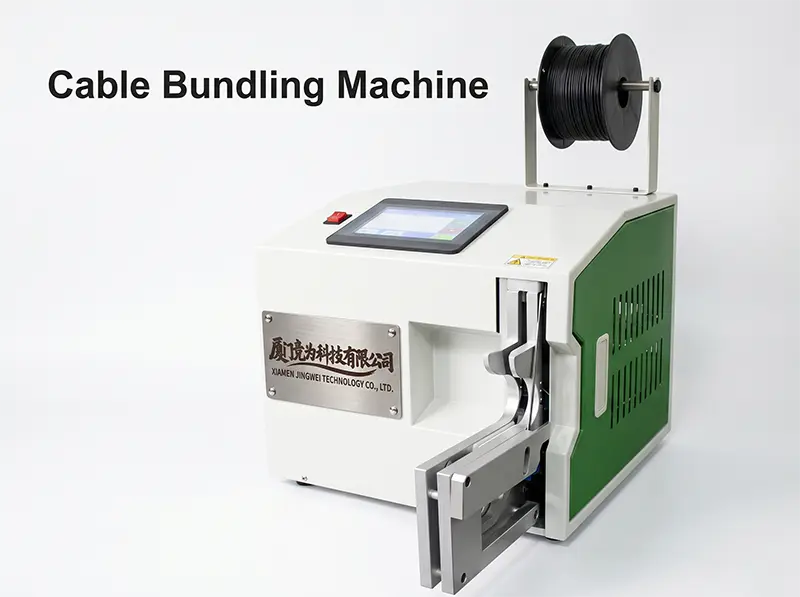

Automatic Touch Screen Cable Bundling Machine WPM-845D

Name: Automatic Touch Screen Cable Bundling Machine WPM-845D
Brand: Wire-Stripping.com
SKU: WPM-845D
Availability: InStock
Rating: 5 (1 reviews)

Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
Automatic Binding machine with touch screen WPM-845D
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twisting cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM

Model	WPM-845A	WPM-845B	WPM-845C	WPM-845D
Voltage	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz
Rated power	≤100W	≤100W	≤100W	≤100W
Dimensions	L350×W456×H315mm (Ribbon holder excluded)	L380×W420×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)
Weight	25KG	32KG	40KG	45KG
Tie length	65-130mm	75-140mm	120-190mm	200-300mm
Bundling diameter	5-30mm	8-30mm	18-45mm	40-80mm
Bundling speed	0.6s/time	0.6s/time	0.6s/time	0.6s/time
Ribbon	iron core plastic coating	iron core plastic coating	iron core plastic coating	iron core plastic coating
Input method	HMI touch screen	HMI touch screen	HMI touch screen	HMI touch screen

1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty 2.No violent shaking, Vibration, No corrosive air, No dusty

Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine

What is the WPM-845D Automatic Touch Screen Cable Bundling Machine used for?

The WPM-845D is an industrial-grade automatic binding machine designed for efficiently creating organized cable harnesses and wire bundles. It is ideal for bundling cables, wires, hoses, or tubes with diameters ranging from 40mm to 80mm, making it a key solution for manufacturing, automotive, appliance, and electronics assembly lines to improve product consistency and assembly speed.

What are the key features of the WPM-845D's touch screen and control system?

The machine features a user-friendly touch screen interface coupled with a programmable logic controller (PLC). This advanced control system allows for easy setup, precise adjustment of binding parameters, and storage of multiple programs for different bundle sizes. The PLC ensures reliable, consistent operation and simplifies the automation process for high-volume production environments.

How does the automatic binding process work on this machine?

The WPM-845D automates the entire bundling process using a twist tie mechanism. It is equipped with four motors that work in unison to feed, twist, and cut the tie material securely around the wire bundle. An operator simply places the cables into the bundling zone, and the machine completes the tie with consistent tension and placement, significantly reducing manual labor and variability.

What are the main benefits of using an automatic bundler like the WPM-845D?

This machine delivers substantial benefits including increased production efficiency, uniform bundle quality, and reduced operator fatigue. It lowers labor costs by automating a repetitive task, minimizes material waste through precise tie application, and enhances workplace safety by reducing manual handling. The consistent results also improve the professional appearance and reliability of the final cable harness products.

Is the WPM-845D suitable for different types of tie materials?

Yes, the WPM-845D automatic twist tie machine is designed to work with standard spooled tie materials, such as paper-covered wire ties, commonly used in industrial bundling. The machine's feeding and twisting mechanisms are engineered for compatibility with these materials, ensuring a secure bind. For specific material recommendations or custom tie options, consulting with the manufacturer or supplier is advised to ensure optimal performance.
