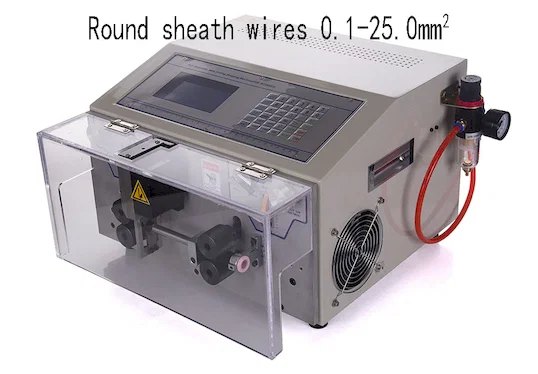

Sheathed cable cutting and stripping machine WPM-09HT2 25sq.mm
Sheathed cable cutting and stripping machine WPM-09HT2 25sq.mm
  • Sheathed cable cutting and stripping machine WPM-09HT2 25sq.mm

  • Model No: WPM-09HT2
  • Sheathed cable cutting and stripping machine, Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product
    Cutting Length: 0.1mm – 100m
    Cutting Tolerance: ≤0.002×L (L = Cutting Length)
    Sheath Stripping Length: Head 0.1 – 250mm, Tail 0.1-150mm
    Cutting Cross-sectional Area of Wire Core: 0.1 – 25mm2 AWG(8#-32#)
  • Inquiry now
Detailed description

Sheathed cable cutting and stripping machine, Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product, Sheathed cable cutting and stripping machine WPM-09HT2
Scope of Application
WPM-09HT2 Full-automatic Computer Wire Stripping Machine made by our factory is suitable for cutting, head-stripping, tail-stripping, and middle-stripping of the single–strand, multi-strand, and sheath wire. The maximum processing cross-sectional area is 0.1-25mm 2; the maximum cutting length is 100m, head-stripping 250mm, and tail-stripping150mm. WPM-09HT2 is suitable for stripping sheath wire, especially for sheath wire of long Wire Head and Wire Tail.
Weight: 42KG
Overall Dimensions: 390mm×350mm×255mm
Power: 200 – 450W
Mode of Display: LCD Liquid Crystal Display Screen in English and Chinese
Cutting Length: 0.1mm – 100m
Cutting Tolerance: ≤0.002×L (L = Cutting Length)
Sheath Stripping Length: Head 0.1 – 250mm, Tail 0.1-150mm
Cutting Cross-sectional Area of Wire Core: 0.1 – 25mm2 AWG(8#-32#)
Maximum Diameter of Conduit Pipe: ¢11
Middle-stripping: 13 places of stripping
Knife Material: High-quality Tungsten Steel
Stripping Speed: 4000 – 10000 pcs/h
Mode of Driving: Four-wheeled Drive (Silent hybrid stepping motor, each step 0.1mm forward)
Adjusting Speed: 0 Slowest, 9 Fastest

Sheathed cable cutting and stripping machine,Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product
sample dispaly of Sheathed cable cutting and stripping machine,Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product
