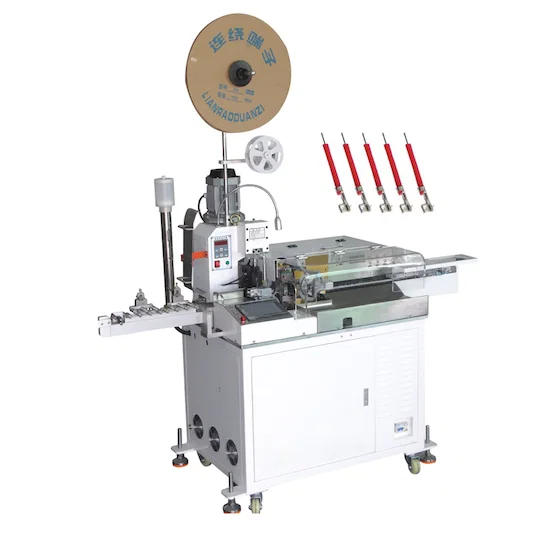

Full Automatic Waterproof Wire Cutting Stripping and Crimping Machine
Full Automatic Waterproof Wire Cutting Stripping and Crimping Machine
  • Full Automatic Waterproof Wire Cutting Stripping and Crimping Machine

  • Model No : WPM-624

  • Wire Cutting Stripping Crimping Machine, Ferrule Crimping Machine, Stripping And Crimping, Terminal Crimper Machine
    Function: Wire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping
    Productivity: 3500pcs/h (Within 100mm)
    Wire specification: AWG#28-AWG#20
    Cutting length: 50mm----9999mm
    Cutting tolerance range: 1mm+cutting length*0.2%
    Stripping length: 0.1mm-----100mm
    Crimping force: 2.0T-3.0T
    Air pressure: 4-6kgf (need clean and dry air)
    Testing Equipment: wire exists or not, terminal exists or not, waterproof plug exists or not, crimp or not, wire blocking and air pressure testing.
    Dimension: 700W X 800L X 1500H(mm)
    Weight: 368kg

  • Inquiry now
Detailed description Wire Cutting Stripping Crimping Machine, Ferrule Crimping Machine, Stripping, And Crimping, Terminal Crimper Machine
1. Automatically complete all the production processes of Plugging waterproof, cutting, stripping, twisting, and crimping at one time.

2. Delicated and concentrated design. Small land occupancy area.

3. KINCO touching screen display and controlling process, easy to operate.

4. Prompting to change the processes and material.

5.High efficient stepper drive、High precision、high speed.

6. Convenient maintenance

7. High-cost performance

8. Fully digital debugging

Function

Wire cutting, stripping, single-end twisting, single-end waterproof plug single-end crimping

Productivity

3500pcs/h (Within 100mm)

Wire specification

AWG#28-AWG#20

Cutting length

50mm----9999mm

Cutting tolerance range

1mm+cutting length*0.2%

Stripping length

0.1mm-----100mm

Crimping force

2.0T-3.0T

Air pressure

 4-6kgf (need clean and dry air)

Testing Equipment

wire exists or not, terminal exists or not, waterproof plug exists or not, crimp or not, wire blocking and air pressure testing.

Dimension

700W X 800L X 1500H(mm)

Weight

368kg
